Plastic Pipe Winder
Product Description:

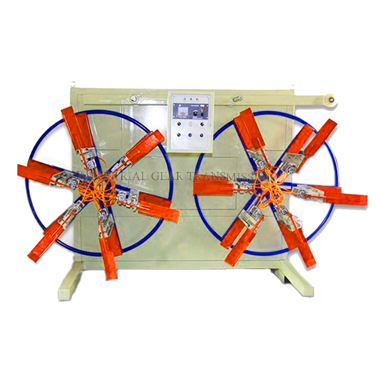

This Double Disk Winder is suitable for PE, PPR, aluminium-plastic compound pipe, cross-linked compound pipe, and other plastic, which are from the front procedure, automatic winding and speed-adjusting, tension method of winding: Two discs wind alternately to ensure continuity. Pneumatically stretch or furl, equipped with ray creel stand, automatically arrange lines to achieve even arrangement.
Product Feature
1.Compact structure, high automatization degree.
2.Nice appearance and convenient operation.
3.Fully automatic,save manpower.
4.Suitable for a wide range diameter of the pipe.
5. Easy to operate, maintain.
Technical Parameter
Model |
SPS400 |
SPS700 |
SPS1200 |
SPS1250 |
SPS1800 |
winding diameter |
400mm |
700mm |
1200mm |
1250mm |
1800mm |
winding speed |
0.5-15m/min |
0.8-8m/min |
0.8-8m/min |
0.8-5m/min |
3-12m/min |
winding width |
300mm |
400mm |
500mm |
420mm |
660mm |
winded pipe specification |
14-32mm |
14-63mm |
20-63mm |
75-125mm |
50-125mm |
air pressure |
0.6Mpa |
0.6Mpa |
0.6Mpa |
0.6Mpa |
0.6Mpa |
