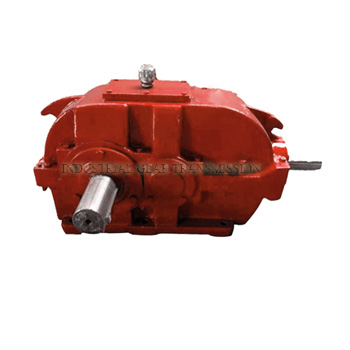

DBY Cylindrical Gearbox Reducer
DBY Series bevel and Cylindrical Gear Reducer is a drive mechanism of external mesh gear on input and output shaft in verticality. The major drive parts adopt high-quality alloy steel. The gear reaches the precision grade 6 (GBL0095-88) after it goes through carburizing, quenching and gear grinding. It features high carrying capacity, long service life, small volume, high efficiency and light weight. They mainly apply to belt conveyer and other kinds of conveying equipment, They also can apply to various kinds of general machinery in the field of metallurgy, mining, chemical engineering, coal mining, building materials, light industry, oil refining, etc.
Components:
1. Housing: Cast Iron or Steel Plate Welding
2. Gear Set: Hardened Helical Gear Pairs & Bevel Gear Pairs, Carburizing, Quenching, Grinding, Gear Hardness HRC54-62
3. Input Configurations:Keyed Solid Shaft Input
4. Output Configurations:Keyed Solid Shaft Output
Keyed Hollow Shaft Output
Hollow Shaft Output with Shrink Disk
5. Main Options:Backstop,Forced Lubrication Oil Pump,Cooling Fan, Cooling Coils
Features:
1. Optional welding steel plate gear box
2. High quality alloy steel bevel helical gears, carburizing, quenching, grinding, large load capacity
3. Optimized design, interchangeable spare parts
4. High efficiency, high reliability, long service life, low noise
5. Output shaft rotation direction: clockwise, counterclockwise or bidirectional
6. Optional backstop and lengthening output shafts
Technical Parameter
Model No. |
DBY 160,180,200,224,250,280,315,355,400,450,500,560 |
Material |
Housing/cast iron |
Gear/20CrMoTi; Shaft/ High-strength alloy steel |
|
Input Speed |
750~1500rpm |
Output Speed |
1.5~188rpm |
Ratio |
8-500 |
Input Power |
0.8~2850 Kw |
Max Permissible Torque |
4800-400000N.M |
