GREAT POWER CO.,LTD

The Global Supplier of Industrial Gearbox,Gear Speed Reducer and related products.

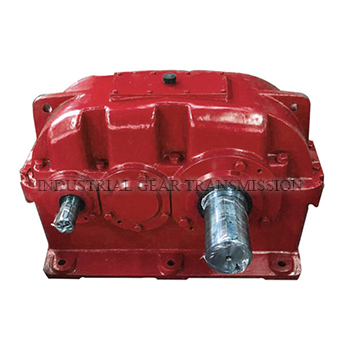

ZLY Series Cylindrical Gear Speed Reducer

Product Description:

Product Introduction

This product is an outer meshed involute helical tooth cylindrical gearbox.

It is widely applied to the fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc.

Main Feature

1.The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance;

2.High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;

3.Smooth and stable in run, low noise;

4.Compact, light, long life, high bearing capacity;

5.Easy to disassemble, inspect and assemble.

Product Model

ZLY double-stage cylindrical gear speed reducer,

ZLY112, ZLY125, ZLY140, ZLY160, ZLY180, ZLY200, ZLY224, ZLY250, ZLY280, ZLY315, ZLY355,ZLY400, ZLY450, ZLY500, ZLY560, ZLY630, ZLY710;

Technical Parameter

Model	No.of Stages	Ratio Range	Input Speed(RPM)	Input Power Range (kw)
ZLY112 ZLY125 ZLY140 ZLY160 ZLY180 ZLY200 ZLY224 ZLY250 ZLY280 ZLY315 ZLY355 ZLY400 ZLY450	Double-stage	6.3~20	≦1500	7.5~6229
