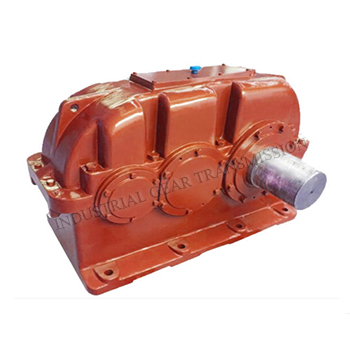

ZSY Series Hard Tooth Helical Gear Reducer for Industrial Machinery
Product Description:
ZSY Series Hard Tooth Helical Gear Reducer is an outer meshed involute helical tooth cylindrical gearbox.It is widely applied to the fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc.
Main Feature
1.The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance;
2.High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;
3.Smooth and stable in run, low noise;
4.Compact, light, long life, high bearing capacity;
5.Easy to disassemble, inspect and assemble.
Technical Parameter
Model |
No.of Stages |
Ratio Range |
Input Speed(RPM) |
Input Power Range (kw) |
ZSY160 ZSY180 ZSY200 ZSY224 ZSY250 ZSY280 ZSY315 ZSY355 ZSY400 ZSY450 ZSY500 ZSY560 ZSY630 ZSY710 |
Three-stage |
22.4~100 |
≦1500 |
4~1905 |
