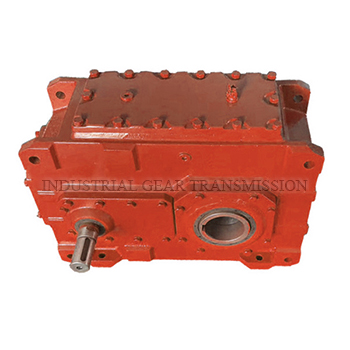

HB Series Parallel Shaft Helical Gearbox with Hollow Output Shaft

Product Description:

H. B Series industrial gearboxes are highly efficient and based on a modular general system. It can be industry dedicated gear units according to customer's demand. The high power gear units include helical and bevel type with horizontal and vertical mounting positions available. More sizes with a reduced variety of parts; Designing noise- absorbing housings; Through enlarged housing surface areas and large fans, as well as the helical and bevel gear adopt advanced grinding ways, which makes lower temperature and noise, higher operational reliability combined with increased power capacity. It is widely used in metallurgy, mining, transport, cement, construction, chemical, textile, light industry, energy and other industries.

Main Feature

1. Unique design concept for heavy duty condition.

2 .High modular design and biomimetic surface.

3. High quality casting housing improves the gearbox mechanical strength and anti-vibration capability.

4. Transmission shaft is designed as polyline. Compact structure meets the higher torque transmit capacity.

5. Usual mounting mode and rich optional accessories.

Technical Data

Type	Stage	Model	ratio	Nominal power (KW)	Nominal Torque(N.m)	Shaft
Parallel shaft gearbox	Single	3--9	1.25--5.6	30-4744	2200-165300	S. Solid shaft H. Hollow shaft D. hollow shaft shrink disk
	double	4--6	6.3--28	21-5193	5900-843000
	three	5--26	22.4-112	9-4749	10600-952000
	four	7--26	100--450	4.1-1325	18400-944000
right angle gearbox	double	4--18	5--14	41-4436	5800-226000
	three	4--26	12.5--90	62-4452	70100-952000
	four	5--26	80--400	2.6-1652	10.6-1652
