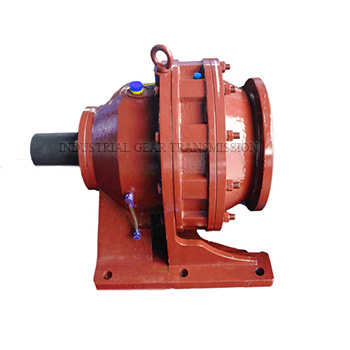

Cycloidal gear reducer
Cycloidal pinwheel reducer
Cyclodal speed reducer
Product Indroduction
This product is designed with planetary transmission theory . It is widely used in textile, light industry, mining, oil chemical industry, construction machine etc.
Main Feature
A. High reduction ratio and efficiency
Single-stage transmission can get the reduction ratio of 1:87 and over 90% efficiency. Multi-stage transmission will offer get higher reduction ratio.
B.Compact structure and small volume
Due to the adoption of planetary transmission principle, input shaft and output shaft are at the same axis, so it has compact structure and small volume.
C. Stable operation and low noise
Cycloidal gear pins have more engagement, bigger overlap coefficient and mechanism of stable machine parts
D.Reliable operation and long service life
Major parts are manufactured with bearing steel, so they have excellent mechanical performance. The adoption of rolling friction makes them durable in use.
E. Powerful overload capacity, strong resistance to impact, small moment of inertia.
Technical Data
Type |
stage |
Model |
Ratio |
Nominal Power (KW) |
Nominal Torque(N.m) |
X/B Series Cycloidal Reducer |
single reducer |
B09/X1 |
9-87 |
0.55-0.18 |
26-50 |
B0/X2 |
1.1-0.18 |
58-112 |
|||
B1/X3 |
0.55-0.18 |
117-230 |
|||
B2/X4 |
4-0.55 |
210-400 |
|||
B3/X5 |
11-0.55 |
580-1010 |
|||
B4/X6/X7 |
11-2.2 |
580-1670 |
|||
B5/X8 |
18.5-2.2 |
1191-3075 |
|||
B6/X9 |
15-5.5 |
5183-5605 |
|||
B7/X10 |
11-45 |
7643 |
|||
Type |
stage |
Model |
Ratio |
Nominal Power (KW) |
Nominal Torque(N.m) |
X/B Series Cycloidal reducer |
Double reducer |
B10/X32 |
99-7569 |
0.37-0.18 |
175 |
B20/X42 |
1.1-0.18 |
600 |
|||
B31/X53 |
2.2-0.25 |
1250 |
|||
B41/X63 |
2.2-0.25 |
1179-2500 |
|||
B42/X64 |
4-0.55 |
2143-2500 |
|||
B52/X84 |
4-0.55 |
2143-5000 |
|||
B53/X85 |
7.5-0.55 |
5000 |
|||
B63/X95 |
7.5-0.55 |
5893-8820 |
|||
B74/X106 |
11-2.2 |
11132-12000 |
|||
B84/X117 |
11-2.2 |
11132-16000 |
|||
B85/X118 |
15-2.2 |
16430-21560 |
|||
B95/X128 |
15-2.2 |
29400 |
