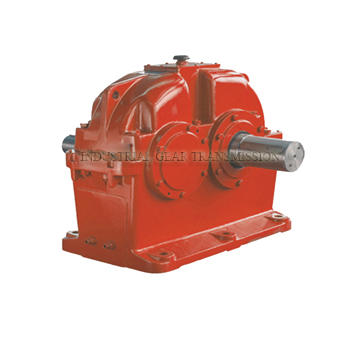

ZDY Series Cylindrical Helical Gear Reducer Gearbox

Product Description:

Product Introduction

This product is an outer meshed involute helical tooth cylindrical gearbox.

It is widely applied to the fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc.

Main Feature

1.The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance;

2.High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;

3.Smooth and stable in run, low noise;

4.Compact, light, long life, high bearing capacity;

5.Easy to disassemble, inspect and assemble.

Technical Parameter

Model	No.of Stages	Ratio Range	Input Speed(RPM)	Input Power Range (kw)
ZDY80 ZDY100 ZDY125 ZDY160 ZDY200 ZDY250 ZDY280 ZDY315 ZDY355 ZDY400 ZDY450 ZDY500 ZDY560	Single-stage	1.25~5.6	≦1500	5~6666
