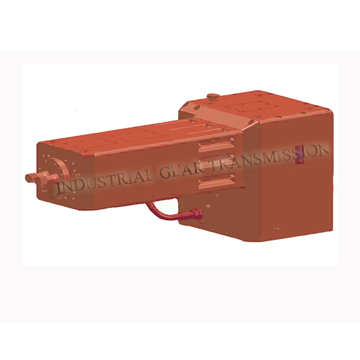

TPS Series Corotating Parallel Twin Screw Extruder Gearbox
Product Description
TPS series gearboxes are standard driving parts designed and developed for corotating parallel twin screw extruder. Its gear is made of low carbon alloy steel after carbon penetrsting, quench and teeth grinding so as to reach high strength and precision. The output shaft is finely made of special alloy steel to suit the requirement of large output torque. The thrust bearing group is a comnination design adopted advanced tandem thrust cylindrical roller bearing and full complement cylindrical roller bearing which have a larger bearing acpacity. The lubrication styles are oil immersion and spray lubrication and can be equipped with pipe style cooling system based on different requirements of machines for cooling lubrication oil. The machine has well-balanced appearance, advanced structure, superior bearing performance and smooth operation. It is an ideal selection of corotating parallel twin screw extruder gearbox.
Product Feature
1. This series product is suitable for corotating parallel twin screw extruder.
2. The temperature in work environment is -10℃~45℃. When temperature is lower than 0℃, the lubricating oil should be preheated before starting. When thermal power is not enough, the cooling measure should be taken.
3. The input speed of the gearbox is normally not larger than 1500rpm.
Technical Parameter
Model |
Center distance of output shaft (mm) |
Screw diameter (mm) |
Ratio (i) |
Input shaft speed (r/min) |
Output shaft speed (r/min) |
Input Power (kW) |
Maximum single axis output torque (N.m) |
TPS75 |
60 |
75 |
6 |
1500 |
250 |
130 |
2400 |
TPS82 |
66 |
82 |
56 |
1470 |
26.3 |
18.5 |
3358 |
TPS95 |
78 |
95 |
6 |
1500 |
250 |
192 |
3670 |
Application
TPS series gearbox is widely used in a corotating parallel twin screw extruder.
