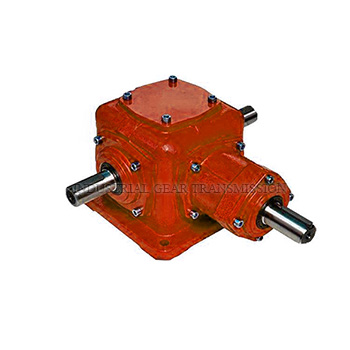

T Series Spiral Bevel Right Angel Steering Box
Product Description:
T series spiral bevel gear steering box, also known as commutator, which is a gear power transmission mechanism. It has a wide range of applications in the industrial field. Steering boxes have been standardized and diversified in specifications. The steering box can be positive and negative operation by low-speed or high-speed transmission . When the speed ratio of the steering box is not 1:1, If the input is the horizontal axis, then the vertical axis output speed is decelerated. If the input is the vertical axis, then the horizontal axis output speed is increased.
Performance characteristics:
1.Standardized and versatile, speed ratio all for the actual transmission ratio. The average efficiency reached 98%.
2. Single axis, double horizontal axis, single vertical axis, and double vertical axis are optional.
3. Spiral bevel gear can be positive and negative operation with low-speed or high-speed transmission, which is low noise, small vibration, and large bearing capacity.
Technical parameters:
1. Speed ratio range: 1/1 1.5/1 2/1 2.5/1 3/1 4/1 5/1
2. Torque range: 11.2-5713 Nm
3. Power range: 0.014-335kW
Application:
T series spiral bevel gear steering box is widely used in pharmaceutical, food, chemical, plastic, steel, metallurgy, textile, paper, and other mechanical equipment and assembly line industries.
