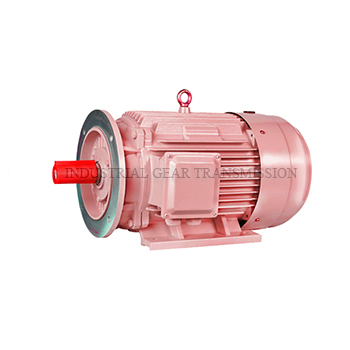

YE3 Series Three Phase Asynchronous Motor With Foot Mounting
Product Description:
Product Description
YE3 series motors are fully enclosed, fan-cooled squirrel-cage three-phase asynchronous motors. The installation mode conforms to IEC and DIN standards. This series is the ideal replacement for Y2, YE2, and YX3 motor series. YE3 series three-phase asynchronous motors meet the secondary efficiency standards stipulated in GB 18613-2012 "Energy Efficiency Limits and Energy Efficiency Grades for Small and Medium-sized three-phase asynchronous Motors". At the same time, the IE3 energy efficiency rating is in line with IEC 60034-30-1: 2014 standard.
Product characteristics
1. High efficiency
2. High reliability
3. Beautiful shape
4. Low noise
5. Low vibration
Technical specification
1. The standard working conditions of the motor are -20℃ to +40℃, and the altitude is 1000 meters.
2. The motor is designed according to Grade F insulation (155℃) and tested according to Grade B insulation (80K) so that the service life and reliability of the motor are guaranteed.
3. Protection level
The protection class of the motor is IP55, which can be used in dusty or humid environment. We can also provide motors with higher protection grade according to customer requirements.
4. Standard motor is 380V/50HZ. It can design a 50Hz motor with arbitrary voltage in the range of 200-660V. When the supply voltage deviates from the rated voltage ±5%, it can still run well.
5. The vibration speed grade of the YE3 series motor in no-load condition conforms to Class A. In case of special request, B motor can be provided.
Product application
YE3 series motor can be used for compressor, fan, water pump, crusher, and other mechanical equipment, and in petroleum, chemical industry, medicine, mining, and other harsh environmental conditions of the field cooperative power source.
