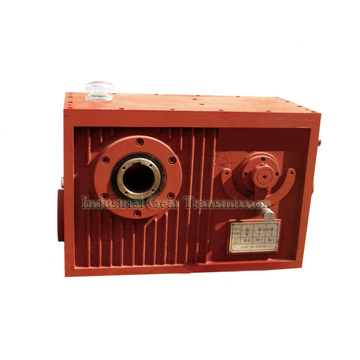

WBS160 Three Speed Gearbox

Product Description:

WBS160 gearbox is a three-speed transmission device with worm gear transmission, its input shaft and output shaft are vertical, and the final stage transmission is a worm gear. It is installed with a torque arm and the output is a hollow shaft. A clutch can be provided between the output shaft and the worm. There are two types of assembly forms: left-hand and right-hand. The transmission ratio can be changed by changing the first stage gear parameters.

Technical feature

1.Three shifting speed，transmission ratio：58.03 、 119.11 、 244.49

2.Rated output torque：1800Nm

3. Structure type: gear worm driving, shift by rack and fork

4.Installation method：Torque arm

Application:

WBS160 gearbox is mainly used for shaftless wire take-up machine.
