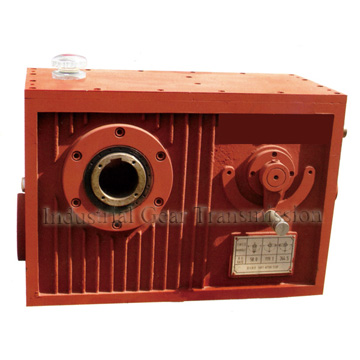

WBS140 Three Speed Gearbox
Product Description:
WBS140 gearbox is a three-speed transmission device with worm gear transmission, its input shaft and output shaft are vertical, and the final stage transmission is a worm gear. It is installed with a torque arm and the output is a hollow shaft. A clutch can be provided between the output shaft and the worm. There are two types of assembly forms: left-hand and right-hand. The transmission ratio can be changed by changing the first stage gear parameters.
Technical feature:
1.Three shifting speed,transmission ratio:38.99、80.03、164.27
2.Rated output torque:1200Nm
3.Structure type: gear worm driving, shift by rack and fork
4.Installation method:Torque arm
Application:
WBS140 gearbox is mainly used for shaftless wire take-up machine.
