Product Description

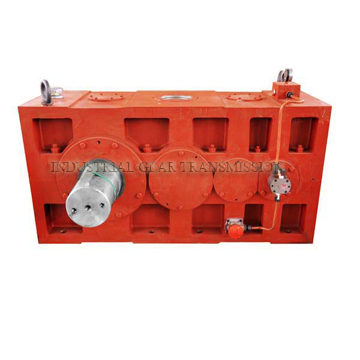

ZSYF Series Special Gearboxes for Calender are special ones matched with buliding-block style calender.
Product Feature
1. The whole machine looks beautiful. As processed on six surfaces, it can be combined easily from multiple sides thus to meet arrangement style of various kinds of rollers for multi-roller calender.
2. The gear data and box structure are optimally designed by the computer.
3. The gears are made of top quality low carbon alloy steel with Grade 6 precision of teeth after carbon penetrating, quench and teeth grinding. The hardness of the teeth surface is 54-62HRC therefore the bearing ability can be risen up largely. Moreover it has compact volume, small noise and high driving efficiency.
4. Equipped with forced lubrication system of the pimp and the motor, the meshed part of teeth and bearings can be completely and reliably lubricated.
5. All standard parts such as bearing, oil seal, oil pump and motor etc, are all standard products selected from domestic famous manufacturers. They can be also selected from imported products as per requirement of customer.
Technical Parameter
Model |
Normal Driving Ratio( i) |
Speed of Input Shaft( r/min) |
Input Power(kW) |
Output Torque (N.m) |
ZSYF160 |
40 |
1500 |
11 |
2801 |
ZSYF200 |
45 |
1500 |
15 |
4298 |
ZSYF215 |
50 |
1500 |
22 |
7143 |
ZSYF225 |
45 |
1500 |
30 |
8419 |
ZSYF250 |
40 |
1500 |
37 |
9474 |
ZSYF300 |
45 |
1500 |
55 |
15758 |
ZSYF315 |
40 |
1500 |
75 |
18990 |
ZSYF355 |
50 |
1500 |
90 |
28650 |
ZSYF400 |
50 |
1500 |
110 |
35017 |
ZSYF450 |
45 |
1500 |
200 |
57306 |
