ZJF Power Auto Loader
Product Description:

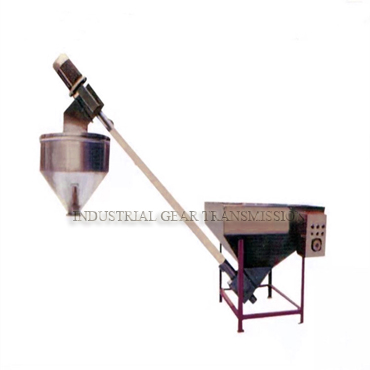

ZJF Plastic Powder Loader:
ZJF Plastic Powder Loader can be used with all kinds of extruders, It can automatically carry plastic powder into the hopper of the moulding machine through a controller of material level, it can save your labour, and realize safety and reliability.
Product Feature
1.High automatic degree .
2.Save labour.
3.Realize the effect of safty and reliability.
Technical Parameter
Model |
ZJF100 |
ZJF300 |
ZJF700 |
Motor power(kw) |
1.1 |
1.1/1.5 |
1.5/2.2 |
Rated conveying capacity(kg/h) |
100 |
300 |
700 |
Max. conveying ability(kg/h) |
200 |
450 |
1000 |
Hopper capacity(kg) |
100 |
120 |
150 |
Spring diameter(mm) |
30 |
36 |
58 |
Feeding pipe and spring length(m) |
3 |
3 to 5 |
3 to 5 |
Storage box capacity(kg) |
120 |
150 |
200 |
Dimension |
850*620*740 |
905*655*840 |
950*950*960 |
Weight(kg) |
120 |
150 |
250 |
