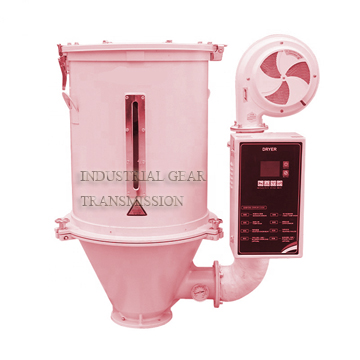

Hopper Dryer

Product Description:

SHD hopper dryer is used for drying hygroscopic plastics which can reach the highest drying temperature of up to 160℃. The optimal double-layer insulation models can offer uniform drying temperatures with less heat loss.In the drying process, hot air with constant temperature is blown by a blower into a hopper to dry the materials. Moisture will be separated and taken away by hot air, thus gaining a satisfied drying effect.Air blown out of the blower became high-temperature drying air after being heated. Through a screen protector and hole screen, hot air can be equably dispersed in the material of the storage tank. A hot air recycler is optional so the air enters drying blower after being filtered to form a closed loop circle and save electricity.
It is the most efficient and economical machine for drying plastic materials that can be dried and wet from packaging, shipping or recycling.
Features:

1. Using high-performance hot air diffuser of hot air evenly dispersed. The drying temperature is maintained presses fainting, increase drying efficiency.

2. The unique curved hot air ducts designed to avoid powder layer deposited on the bottom of the pipe caused by an electric fire.

3. The internal parts inside the tank and all stainless steel, drum and bottom of the separation, easy to clean material, rapid refueling, ensure that the material is not sewage dye.

4.The various models offer Jieke preheat timing device, microcomputer control and double insulation barrel for selection.

5.Adopt proportional deviation indication thermostat, the temperature can be precisely controlled.

Main Technical Parameters:

Model	Total Tray(kg)	Power	Power	Dimension
Model	Total Tray(kg)	Heater(kw)	Fan Motor(kw)	Drum Diameter(m)	Height (mm)
SHD-12	12	1.5	0.05	Ø260	660
SHD-25	25	2.6	0.09	Ø320	850
SHD-50	50	3.9	0.12	Ø430	1050
SHD-75	75	6	0.15	Ø500	1120
SHD-100	100	6	0.25	Ø560	1380
SHD-200	200	9	0.35	Ø710	1500
SHD-400	400	15	0.75	Ø900	2020
SHD-600	600	18	1.1	Ø980	2150
SHD-800	800	21	3	Ø1150	2350
SHD-1000	1000	24	3	Ø1150	2600
