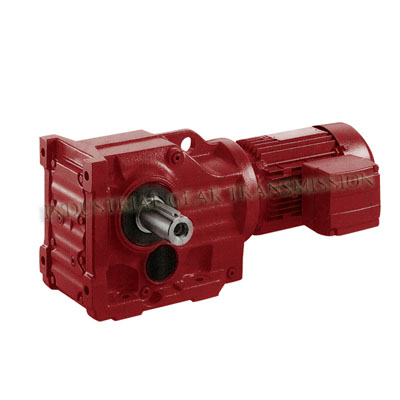

K Series Helical Bevel Geared Motor
Product Description:
Product Feature
1. Highly modular design: It can be easily equipped with various types of motors or other power inputs. The same model can be equipped with motors of multiple powers. It is easy to realize the combined connection between various models.
2. Transmission ratio: fine division and wide range. Combined models can form a large transmission ratio, that is, output extremely low speed.
3. Installation form: the installation location is not restricted.
4. High strength and small size: the box body is made of high-strength cast iron. The gears and gear shafts adopt the gas carburizing quenching and fine grinding process, so the load capacity per unit volume is high.
5. Long service life: Under the conditions of correct model selection (including the selection of appropriate use coefficient) and normal use and maintenance, the life of the main parts of the reducer (except for wearing parts) is generally not less than 20,000 hours. The wearing parts include lubricating oil, oil seals, and bearings.
6. Low noise: The main parts of the reducer have been precision processed, assembled, and tested, so the reducer has low noise.
7. High efficiency: the efficiency of a single model is not less than 95%.
8. It can bear a larger radial load.
9. Can bear axial load not more than 15% of radial force
K series three-stage helical bevel gear reducer motors have high-efficiency and long-life gears. There are foot mounting, flange mounting, and shaft mounting types.
Model
Model
K37、K47、K57、K67、K77、K87、
K97、K107、K127、K157、K167、K187
Main Technical Features:
Output Speed (r/min):0.1-522
Output Torque (N. m):18000 highest
Motor Power (Kw) : 0.12-200
