BQ36-125 Stranded Wire Draw Gearbox with Electric Motor
Product Description:
The BQ36-125 gearbox is a cylindrical gear transmission device with 36 reduction ratios. The input shaft and the output shaft are coaxial and the installation method is foot mounting.
Technical feature:
1.Meshing center distance : 124mm,reduction ratio 1 to 7.6, 36 shifting speeds, common ratio 1.06
2.Allowable output torque:400-800 Nm
3.Structure type: gear transmission, input/output coaxial, gear rack shift fork
4. Installation method: Foot mounting

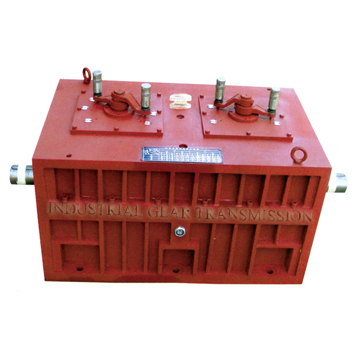

5.Assembly Style:Above picture shows for I style, and the II type could be reached by interchanging input and output shaft.
6.This gearbox output shaft could match model DBY180 or DBY200 gearbox
