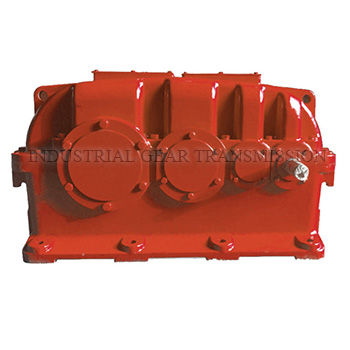

ZDY/ZLY/ZSY/ZFY Series Cylindrical Gear Reducer

Product Description:

China Jiangyin ZDY/ZLY/ZSY/ZFY series cylindrical gear reducer

Product Introduction

This product is an outer meshed involute helical tooth cylindrical gearbox.

It is widely applied to the fields of metallurgy, mines, hoisting, transportation, cement, architecture, chemical, textile, printing and dyeing, pharmaceutical, etc.

Main Feature

1.The gear is made of high strength low carbon alloy steel through carburization and quenching. The hardness of tooth surface may reach to HRC58-62. All gear adapts NC tooth grinding process, high in accuracy and good in contact performance;

2.High in transmission efficiency: single stage, more than 96.5%; double-stage, more than 93%; three-stage, more 90%;

3.Smooth and stable in run, low noise;

4.Compact, light, long life, high bearing capacity;

5.Easy to disassemble, inspect and assemble.

Product Model

1. The type has ZDY single-stage cylindrical gear speed reducer,
ZLY double-stage cylindrical gear speed reducer,
ZSY three-stage cylindrical gear speed reducer,
and ZFY four-stage cylindrical gear speed reducer.

-Single stage: ZDY80, ZDY100, ZDY125, ZDY160, ZDY200, ZDY250, ZDY280, ZDY315, ZDY355, ZDY400, ZDY 450,ZDY500, ZDY560;

-Two-stages: ZLY112, ZLY125, ZLY140, ZLY160, ZLY180, ZLY200, ZLY224, ZLY250, ZLY280, ZLY315, ZLY355,ZLY400, ZLY450, ZLY500, ZLY560, ZLY630, ZLY710;

-Three-stages: ZSY160, ZSY180, ZSY200, ZSY224, ZSY250, ZSY280, ZSY315, ZSY355, ZSY400, ZSY450,ZSY500,ZSY560, ZSY630, ZSY710;

-Four-stages: ZFY180, ZFY200, ZFY225, ZFY250, ZFY280, ZFY320, ZFY360, ZFY400, ZFY450, ZFY500, ZFY560,ZFY630, ZFY710, ZFY800.

Technical Parameter

Model	No.of Stages	Ratio Range	Input Speed(RPM)	Input Power Range (kw)
ZDY80 ZDY100 ZDY125 ZDY160 ZDY200 ZDY250 ZDY280 ZDY315 ZDY355 ZDY400 ZDY450 ZDY500 ZDY560	Single-stage	1.25~5.6	≦1500	5~6666

Model	No.of Stages	Ratio Range	Input Speed(RPM)	Input Power Range (kw)
ZLY112 ZLY125 ZLY140 ZLY160 ZLY180 ZLY200 ZLY224 ZLY250 ZLY280 ZLY315 ZLY355 ZLY400 ZLY450	Double-stage	6.3~20	≦1500	7.5~6229

Model	No.of Stages	Ratio Range	Input Speed(RPM)	Input Power Range (kw)
ZSY160 ZSY180 ZSY200 ZSY224 ZSY250 ZSY280 ZSY315 ZSY355 ZSY400 ZSY450 ZSY500 ZSY560 ZSY630 ZSY710	Three-stage	22.4~100	≦1500	4~1905

Model	No.of Stages	Ratio Range	Input Speed(RPM)	Input Power Range (kw)
ZFY160 ZFY180 ZFY200 ZFY224 ZFY250 ZFY280 ZFY315 ZFY355 ZFY400 ZFY450 ZFY500 ZFY560 ZFY630 ZFY710	Four-stage	22.4~100	≦1500	4~1905
