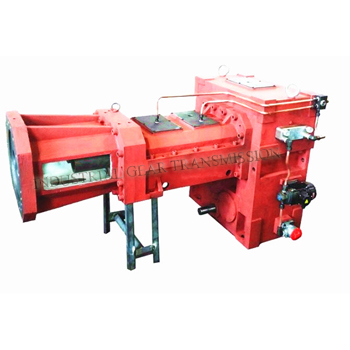

YPS Series Counter-rotating Parallel Twin Screw Extruder Gearbox
Jiangyin double twin screw gear reducer
Product Description
YPS series gearboxes are standard driving parts designed and developed for counter-rotating parallel twin screw extruder. Its gear is made of low carbon alloy steel after carbon penetrating, quench and teeth grinding so as to reach high strength and precision. The output shaft is finely made of special alloy steel to suit the requirement of large output torque. The thrust bearing group is a combination design adopted advanced tandem thrust cylindrical roller bearing and full complement cylindrical roller bearings which have a larger bearing capacity. The lubrication style are oil immersion and spray lubrication and can be equipped with pipe style cooling system based on different requirement of machine for cooling lubrication oil. The whole machine has well-balanced appearance,advanced structure,superior bearing performance and smooth operation. It is an ideal selection of counterrotating parallel twin screw extruder gearbox.
Product Feature
1. This series product is suitable for counterrotating parallel twin screw extruder.
2. The temperature in work environment is -10℃~45℃.When temperature is lower than 0℃,the lubricating oil should be preheated before starting. When thermal power is not enough, the cooling measure should be taken.
3. The input speed of the gearbox is normally not larger than 1500 rpm.
Technical Parameter
Bearing Ability of Gearbox |
||||||||
No |
Model |
Central Distance of Output Shaft(mm) |
Screw Dia (mm) |
Driving Ratio |
Input Speed (r/min) |
Output Speed (r/min) |
Input Power(KW) |
Output Torque of Single Shaft (N.M) |
1 |
YPS76/90 |
76 |
90 |
33.21 |
1500 |
45.2 |
60 |
6338 |
2 |
YPS 90/107 |
90 |
107 |
33.13 |
1500 |
45.3 |
80 |
8438 |
3 |
YPS 92.5/114 |
92.5 |
114 |
32.15 |
1500 |
46.7 |
100 |
10235 |
4 |
YPS95/116 |
95 |
116 |
33.34 |
1500 |
45 |
100 |
10612 |
5 |
YPS104/120 |
104 |
120 |
33.27 |
1500 |
45.09 |
110 |
11650 |
6 |
YPS110/130 |
110 |
130 |
33.16 |
1500 |
45.2 |
150 |
15838 |
Application
YPS series counterrotating parallel twin screw gearbox is widely used in a counter-rotating parallel twin screw extruder.
