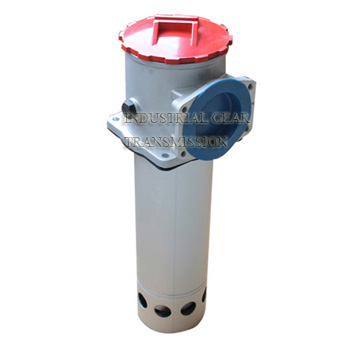

TF Tank Mounted Suction Filter

Product Description:

The TF series filters can be installed on the top,at the side or in the bottom of the tank.There is a check valve inside the filter,during maintenance,when filter element is withdrawn for washing,the check valve sill close automatically to stop oil flowing out from the tank.

A vacuum indicator in the filter gives signals when the pressure drop across the element reaches 0.018Mpa showing that the filter shall be cleaned,If no maintenance is done,as the pressure drop rises to 0.02Mpa,the by-pass valve will open to allow oil flowing into pump.This kind of filter can be installed at inlet port of the pump,in order to protect the pump and other component.This filter can help to keep hydraulic system clean and easy to use.

Product Feature:

1.Easy installation and connection, simplify the system pipeline:
2.Setting up self-sealing valve makes it very convenient to replace, clean filter element or repair system.
3.With the oil filter pollution sender bypass valve to improve the reliability of the hydraulic system.

Application:

The filter is installed at the oil suction port of the oil pump to protect the oil pump and other hydraulic components so as to avoid inhaling contaminated impurities, effectively control the contamination of the hydraulic system and improve the cleanliness of the hydraulic system.
